Collection Two
Wall & Perimeter Railings:		 Here are some examples of our wide range.
Boarder
Arrow bullet point Georgian Pedestrian Gate and Railings
Boarder

Boarder

Boarder

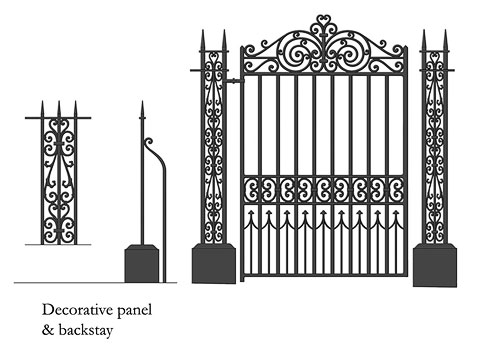

Georgian Pedestrian Gate & Railings
WS-10478 & WS-10479

Listed property in conservation area required gate and railings in keeping with Georgian House.
  • Gate end frames 25mm sq
  • Major vertical sections 20mm sq solid
  • Hand forged leaves within gate, piers and pilasters
  • Large rivets used within ornament
  • Hot rolled steel section (no die extrusion or hollow extruded section which means that all sections are slightly irregular)
  • Horizontal sections 40 by 12mm
  • Hand forged wrought scrollwork.
  • Hot forged railing spikes
  • Traditional hinge and finger latch on gate
  • Vertical sections punched through horizontals and recessed into stone 150mm
  • Hot dipped galvanised and primer painted.
  • Top coat black
Every element of the gate is made within my own workshop- we do not buy anything from catalogues supplying pre-fabricated parts such as FH Brundle, Lecky metal ornaments, Rourkes etc…
Georgian pedestrian railings

Dwarf stone wall core drilled. Each vertical rail let into the stonework and secured by grout and then topped up with hot lead in the traditional manner.
